If your air assist is weak and you want to troubleshoot the issue. Source a 6mm to 6mm push in fitting and try this.
Power off and unplug the machine.

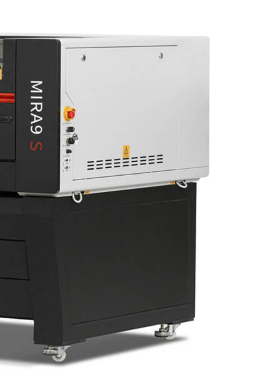

Open the right side electrical panel.

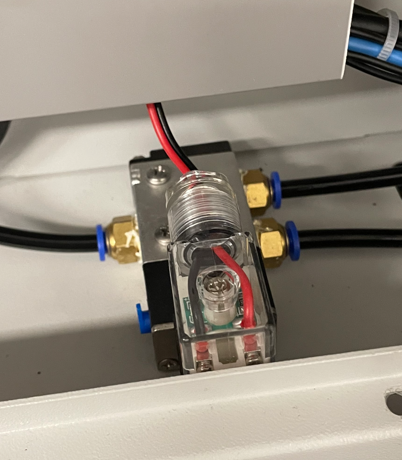

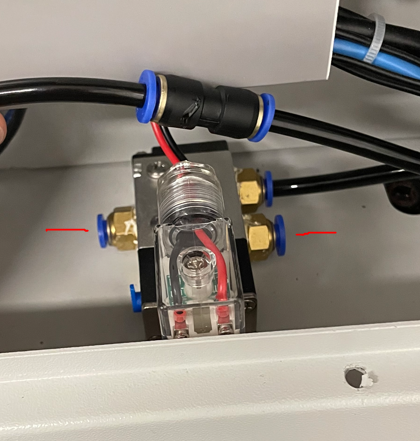

Locate the solenoid. There are 2 air tubes going in. 1 is from the external air connection the other is from the internal compressor.
Typically the internal compressor line is the one closer to the outside frame of the machine.
Now test the machine to see if you have any improvements.
