MIRA - replacing air solenoid

Modified on Thu, 19 May 2022 at 12:55 PM

You have 2 options:

1. remove the brass air couplers from the old air solenoid and put them in the new air solenoid unit and wire it up and leave it laying in the Mira unit.

2. open up the bed of the Mira, access the screws for the air solenoid from inside the Mira and underneath the bed:

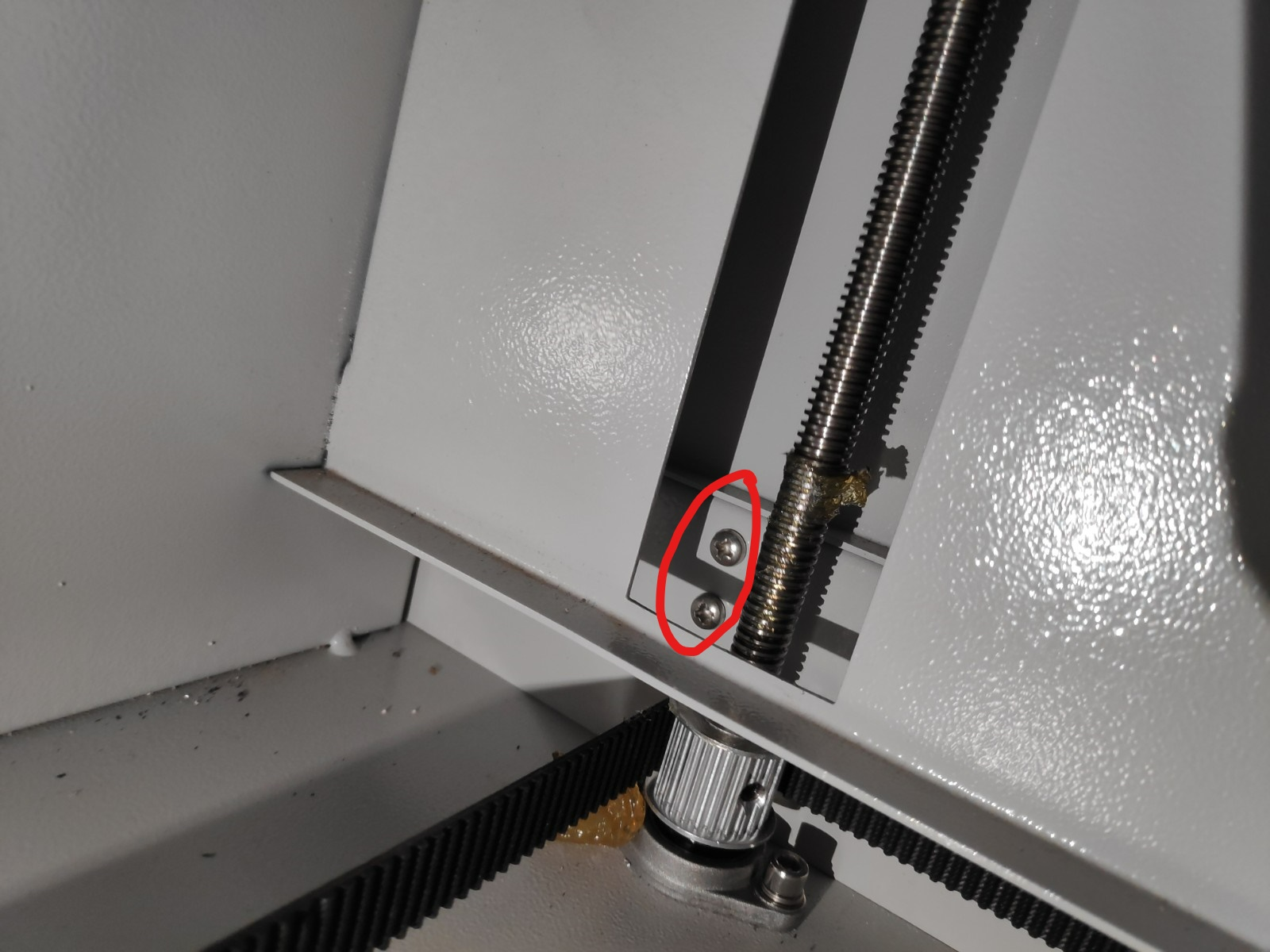

On the right side of the Mira, two 2 screws for the air solenoid will be through the cut outs for the back ball screw.

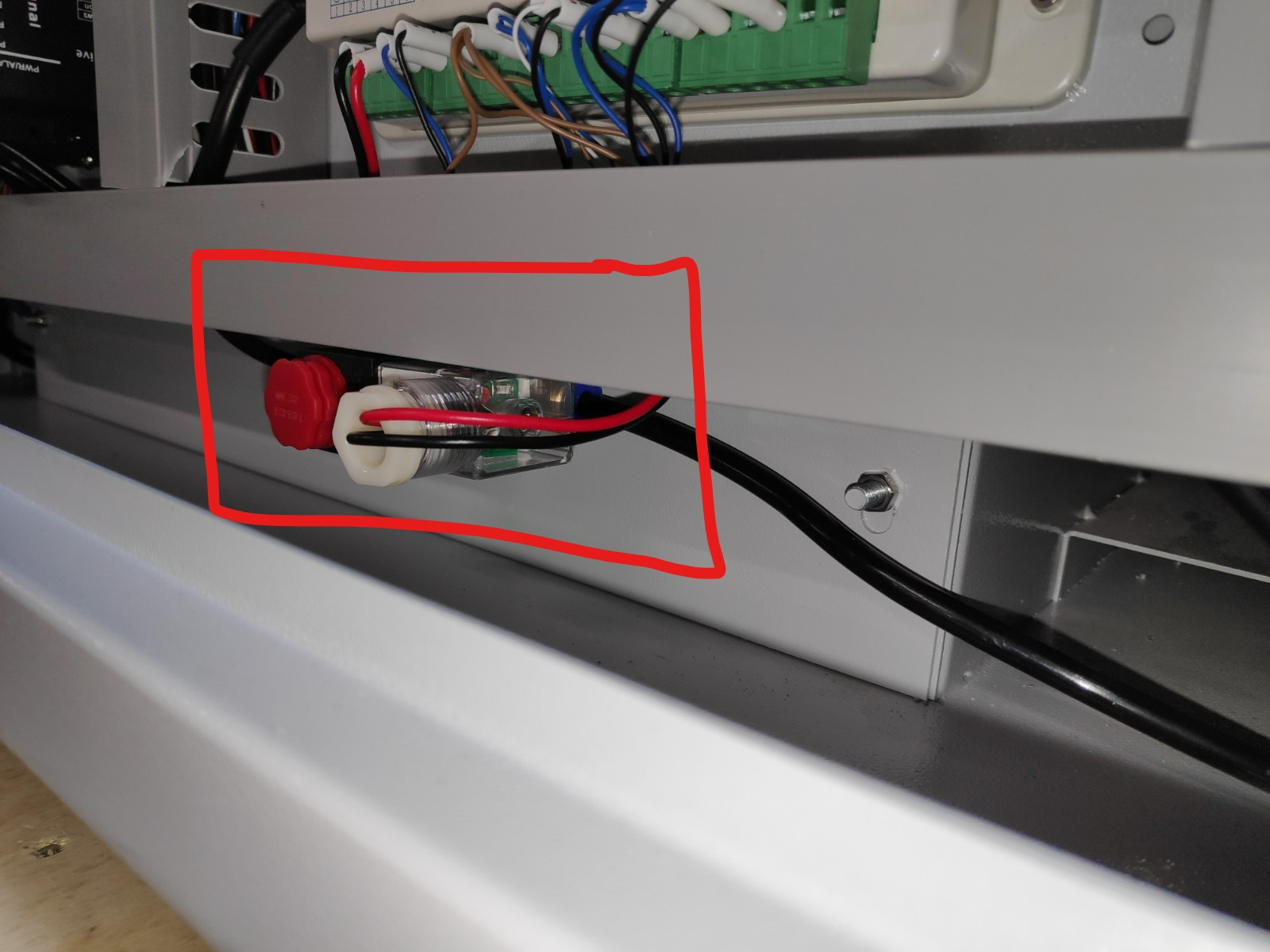

Remove these screws to take out the old air solenoid (circled in red). Install the new one once you have installed the previous brass air couplers into the new air solenoid. Replace hoses into their locations on the new air solenoid.
