MIRA 7 - chiller power

Modified on Thu, 30 Dec 2021 at 04:21 PM

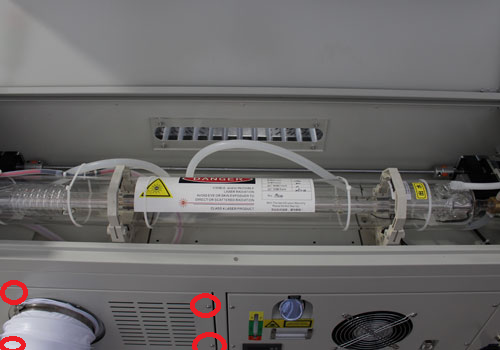

1. remove the rear panel blower panel with the four screws in the corner.

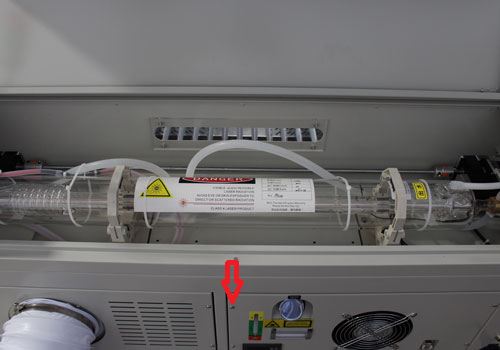

2. look for the main power wires directly on the top near the highlighted screw on the inside of the cabinet.

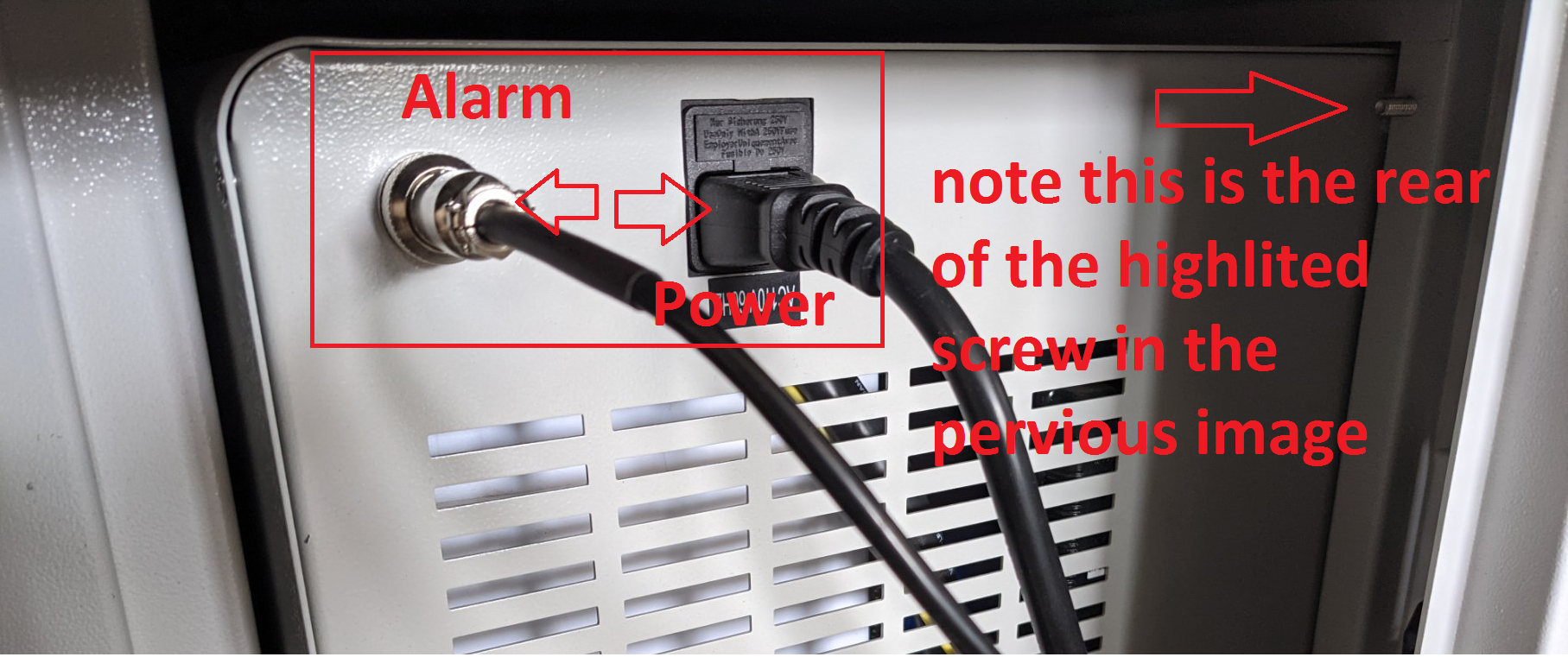

3. the plugs you are looking for will be located here on the left side of your chiller ( faced from the rear.)
