Storm Vacuum Pump B1/D-23 install

Modified on Fri, 4 Nov, 2022 at 2:40 PM

Storm Vacuum Pump install

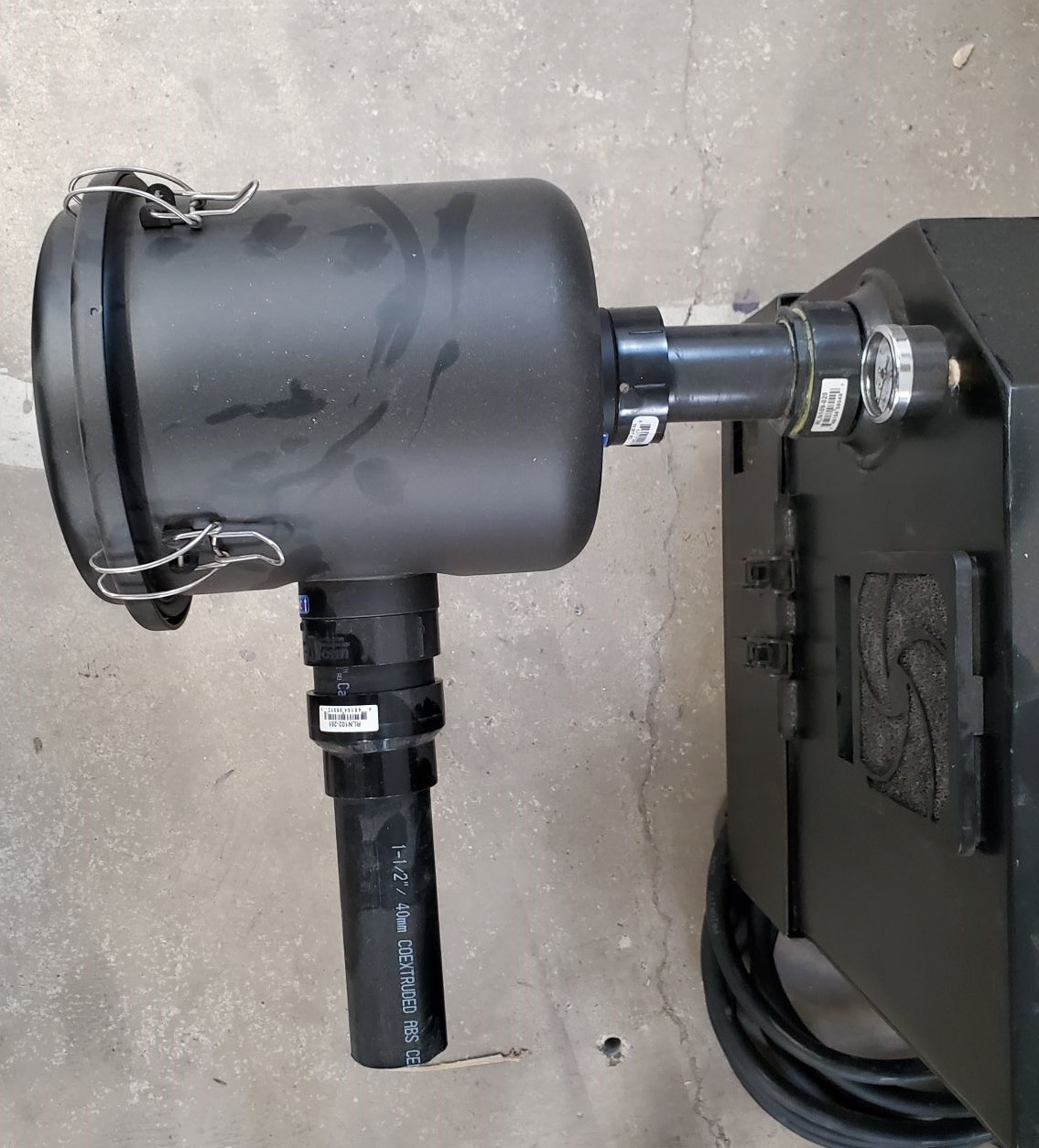

Thread filter into Blackbox storm vacuum pump canister. Connect black "bell" to the Blackbox Storm vacuum pump.









Place Blackbox Storm vacuum pump on vacuum tray. Attach C1 CNC clear vacuum piping to the black ABS tube on Blackbox vacuum pump and tighten with a steel hose clamp.













Connect Blackbox Storm power cable to the yellow power plug coming out of your controller box.
