To install 3 phase machine with a Hurricane vacuum pump please see the instructions bellow.

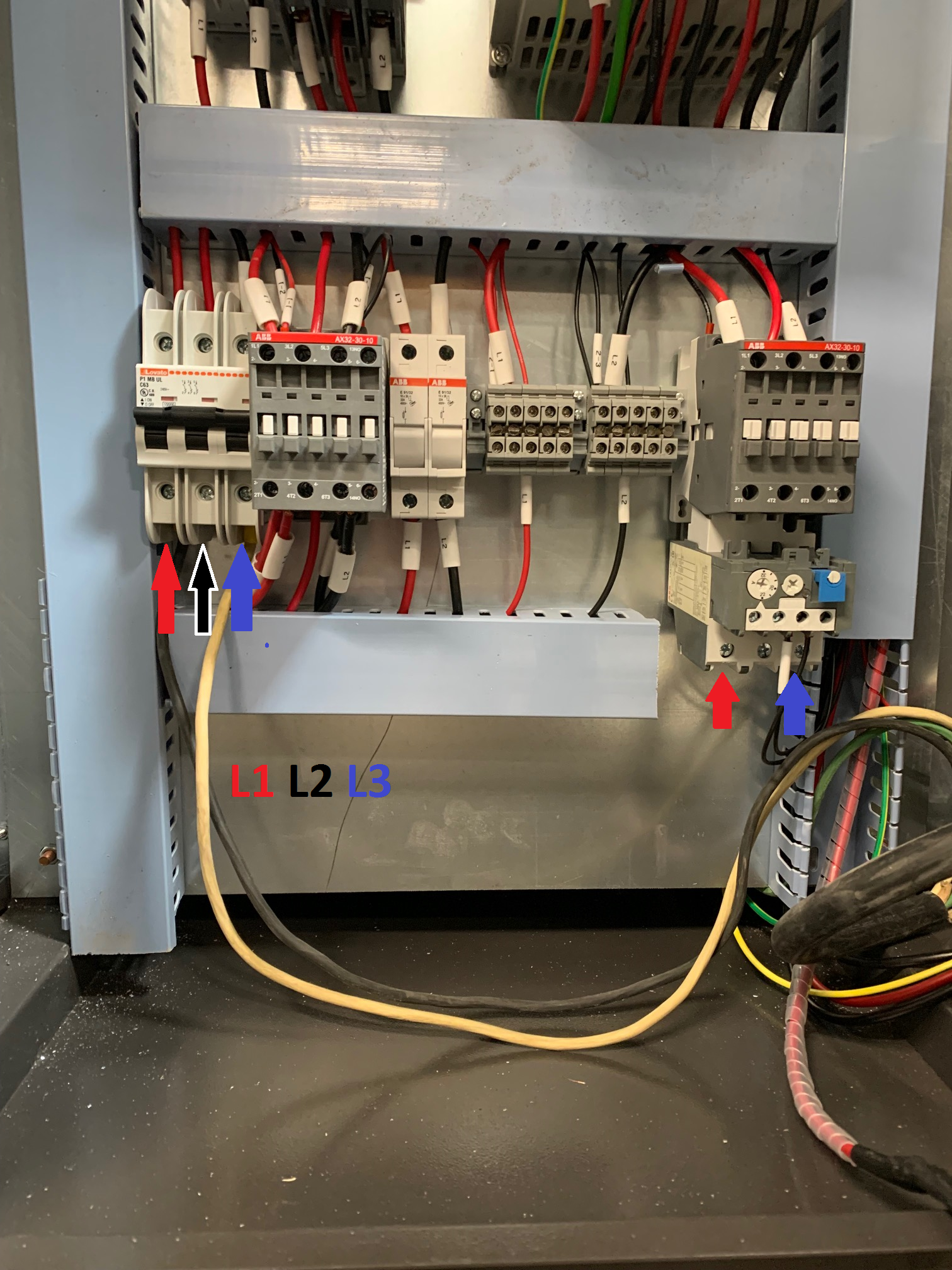

1. install your three phase wiring as shown in the image bellow. ( this is located in the bottom left corner of the image)
2. install the hurricane pump wires into the red and blue slots shown in the picture bellow ( this is located in the bottom right corner of the image)

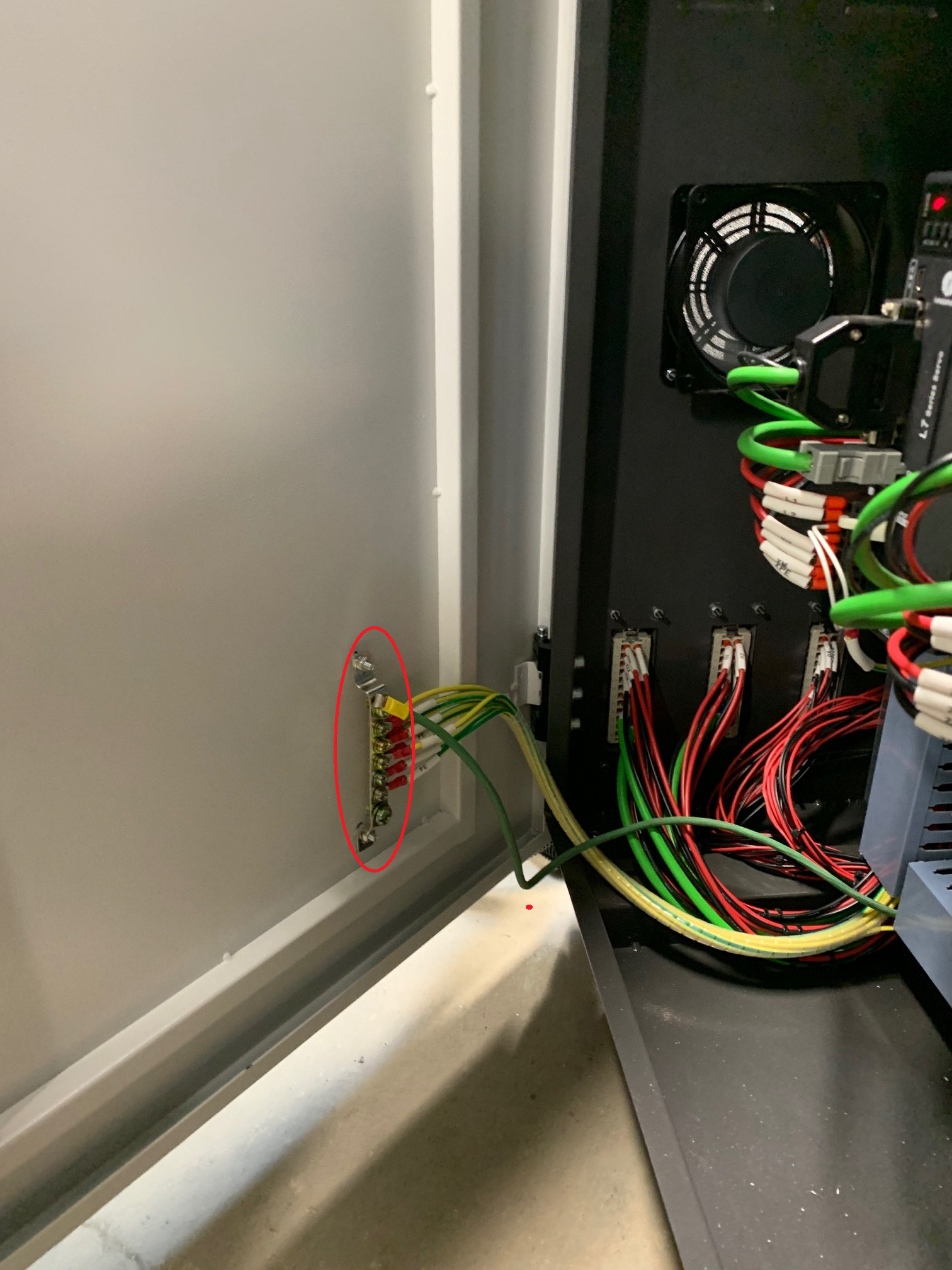

3. to install the ground wire open the opposite side of your electrical cabinet and secure it to the ground bar located in (image 2)
IMAGE 1
Image 2
