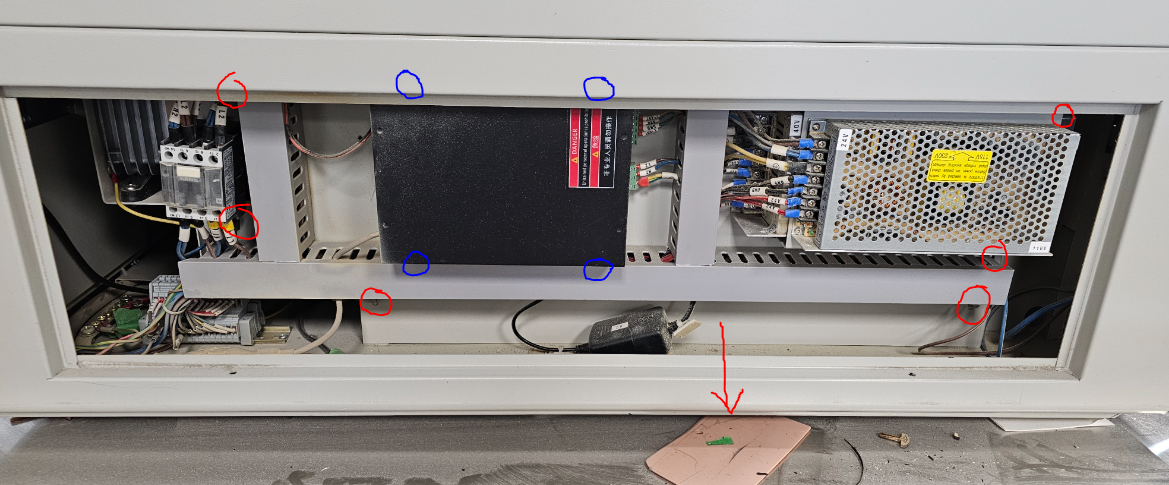

Power supply mechanical instructions:
6 red circles are the nuts that need removed to allow the entire electrical plate to slide down. The lower plate folds down, the large upper plate slides downwards.
You must do the above because you can't access the 4 blue bolts otherwise.
4 blue bolts are just phillips heads that can be unscrewed to mechanically remove the power supply box.

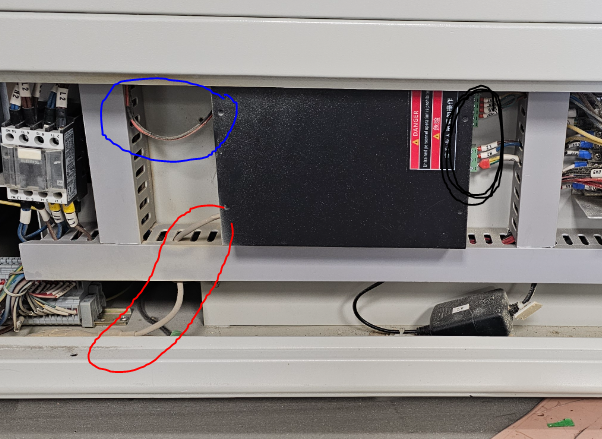

Electrical connections:
Red circle is a simple screw together connector. Unscrew old, screw in new.
Blue you will have to splice into. Cut the wire, then using a butt splice connector or similar, connect the new wire in from the new power supply. Wrap in electrical tape to protect.
Black circle, just unplug the green phoenix connectors, plug them into the new supply.
