Please see the instructions bellow on leveling the bed.
1. raise your machine bed to to just below the Z position sensor.

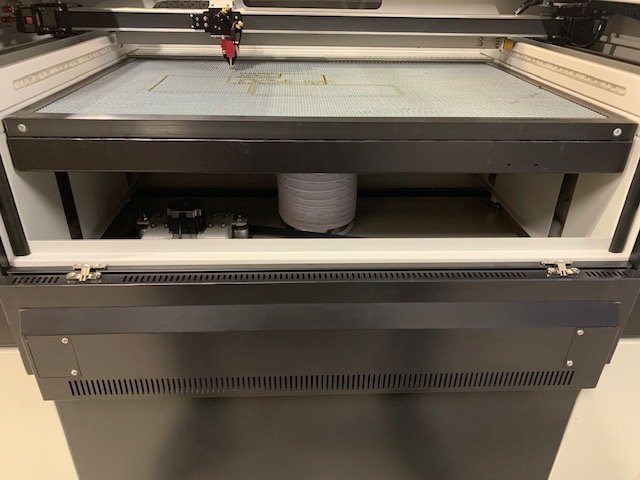

2. open your lower drop down window so you can see the Z axis motor and belt. ( see image below.)

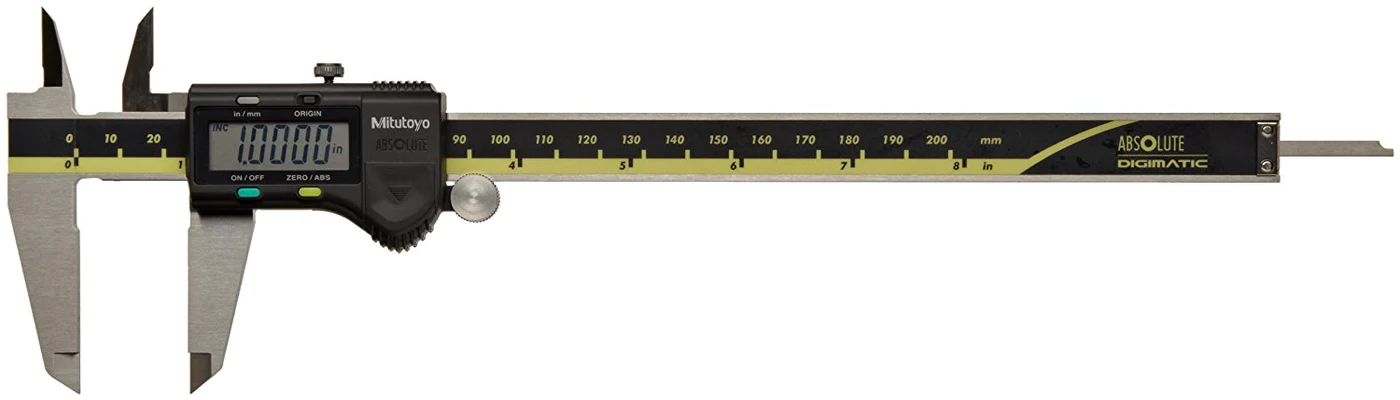

3. Borrow or buy some good quality digital or analog calipers to use for measuring in the next steps.
4. using the top of your gantry as a reference get a locking measuring tool and press it against the top of the gantry and lock in your measurement. ( see images below. )

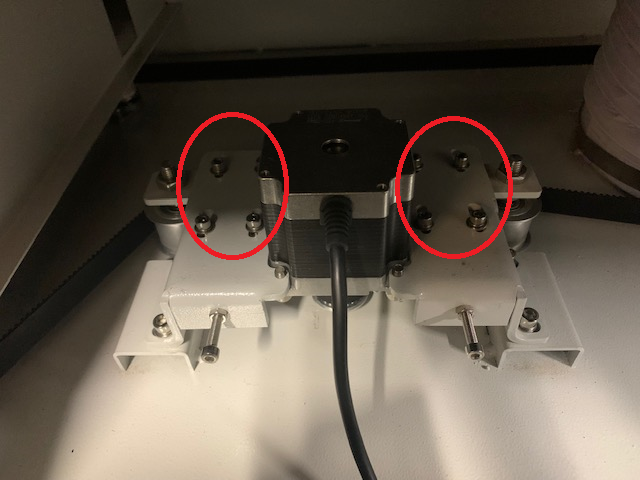

6. Under the table (when you opened the front hatch of the machine at the start), you will see the spots that you would use to loosen the locking bolts for the belt tension system. please note it is in a slightly different location between the mira 9 and mira 7 however both systems are the same. ( see images below)
(Mira 7)
(MIRA 9)
(Mira 7)
9. once all the corners are at the same height re tension your belt. NOTE: please double check that you didn't accidentally adjust your bed by checking each corner again. ( adjust as necessary.)
once all has been done test your machine in each corner to confirm proper function.
If you have any additional questions please contact us again at support@cancam.ca
