tightening couplers

Modified on Mon, 25 Jan, 2021 at 9:39 AM

to tighten your couplers you must first locate where the motors are.

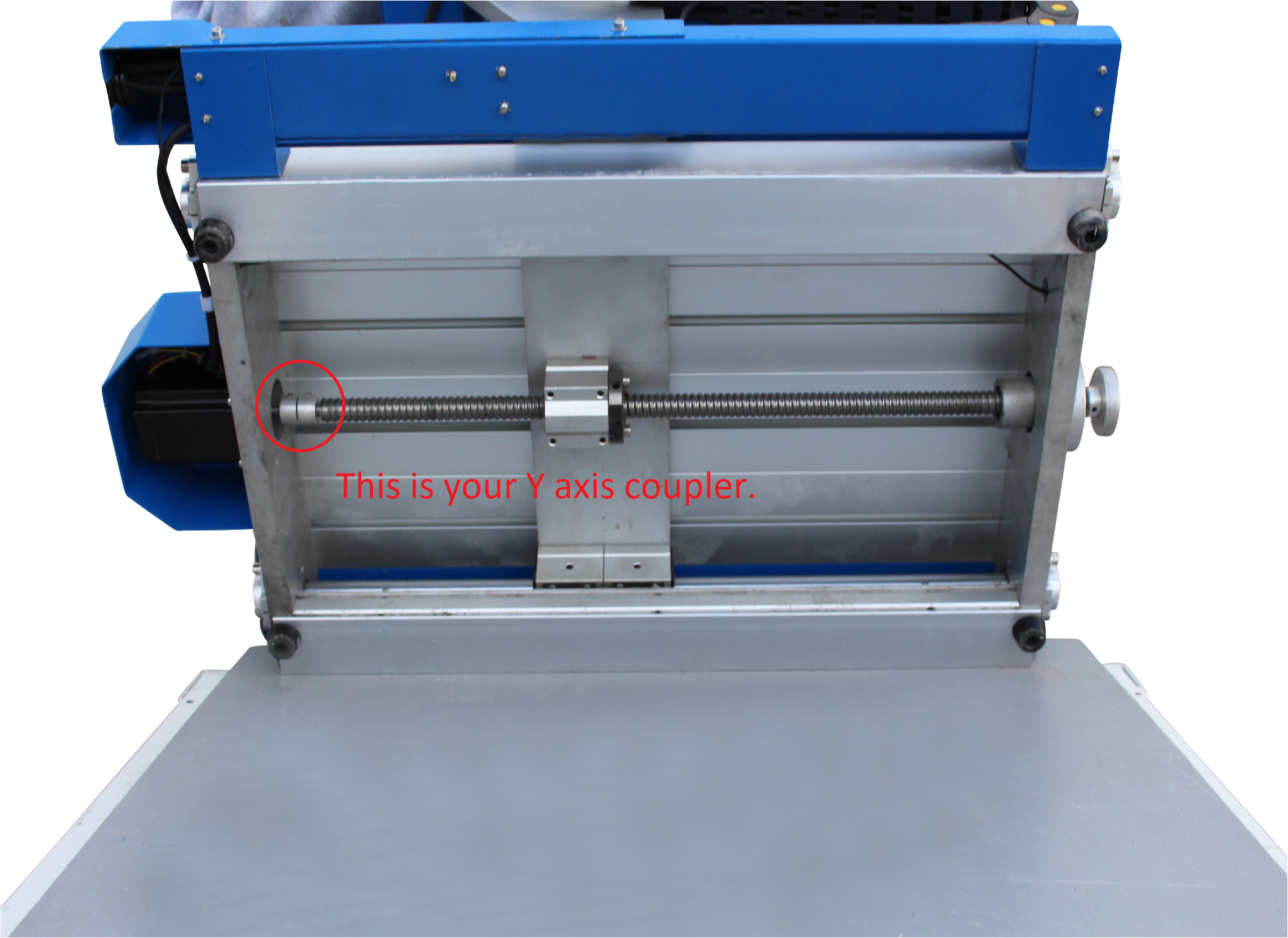

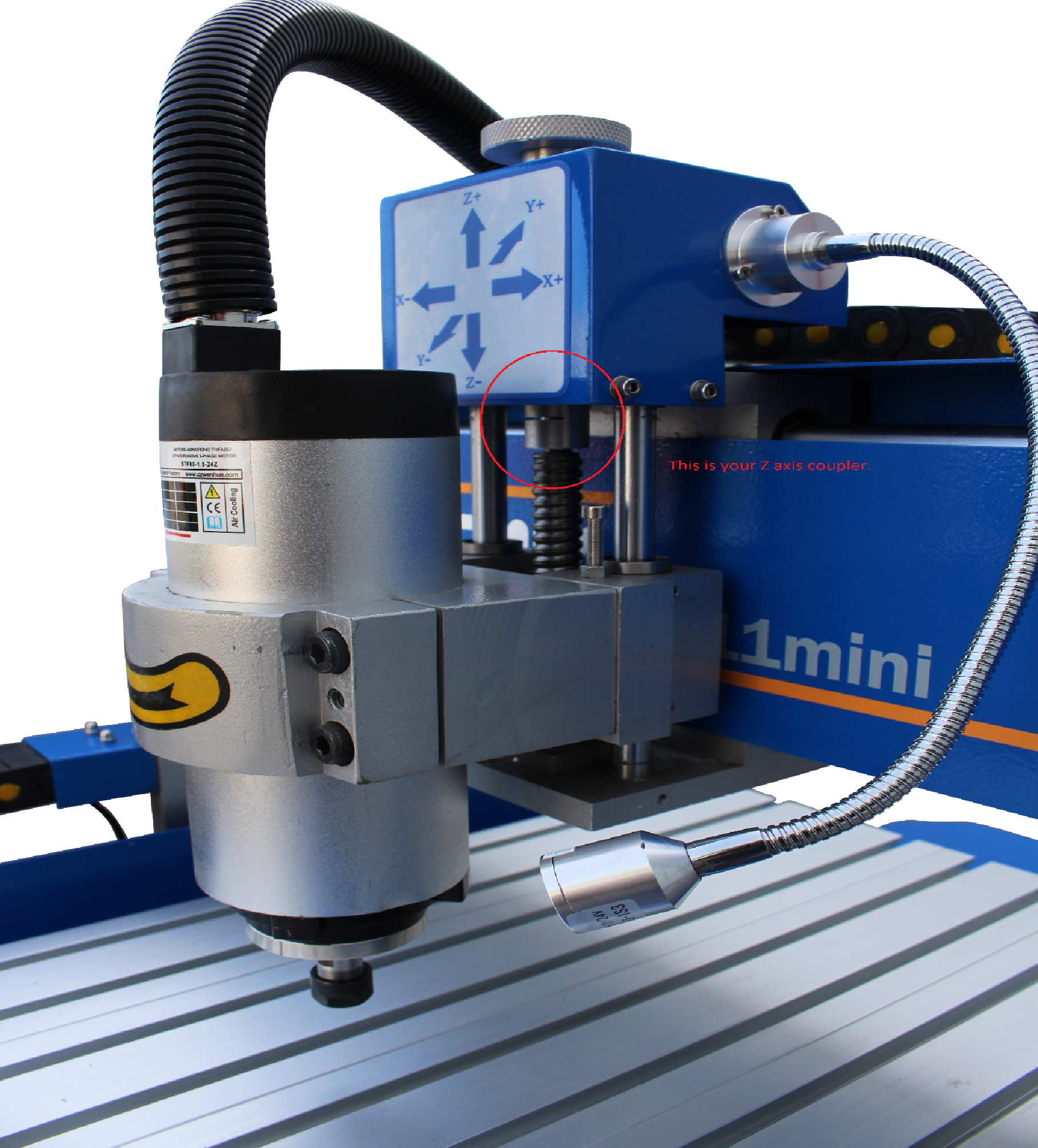

The images bellow depict the Z, and Y axis.

To get to your X axis coupler you will need to remove the front panel on your machine to expose the X axis ball screw. from there you will find the coupler and tighten the Allen bolts here.
