LED Light Strip Replacement For Aeon Mira and Nova

For Aeon Lasers with burnt out LEDs.

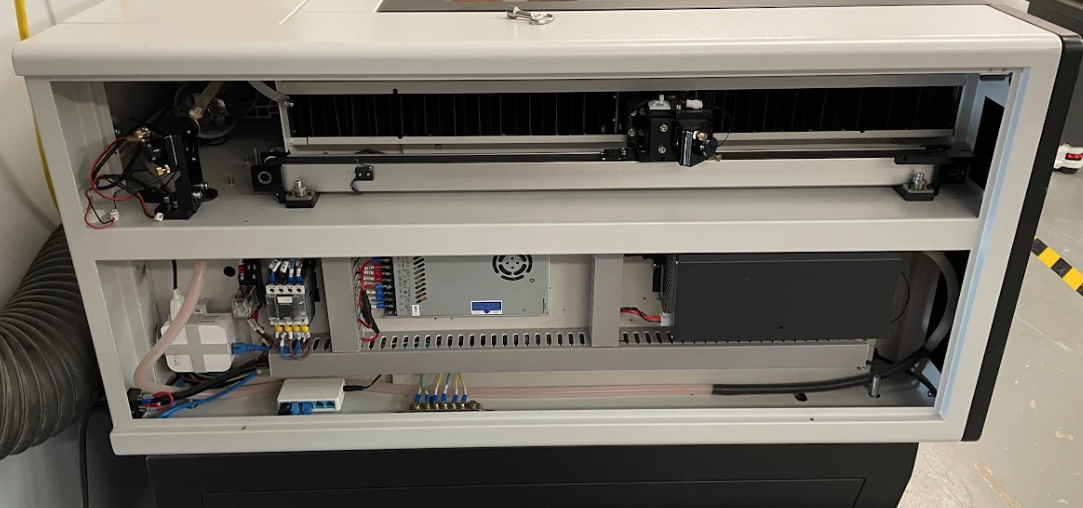

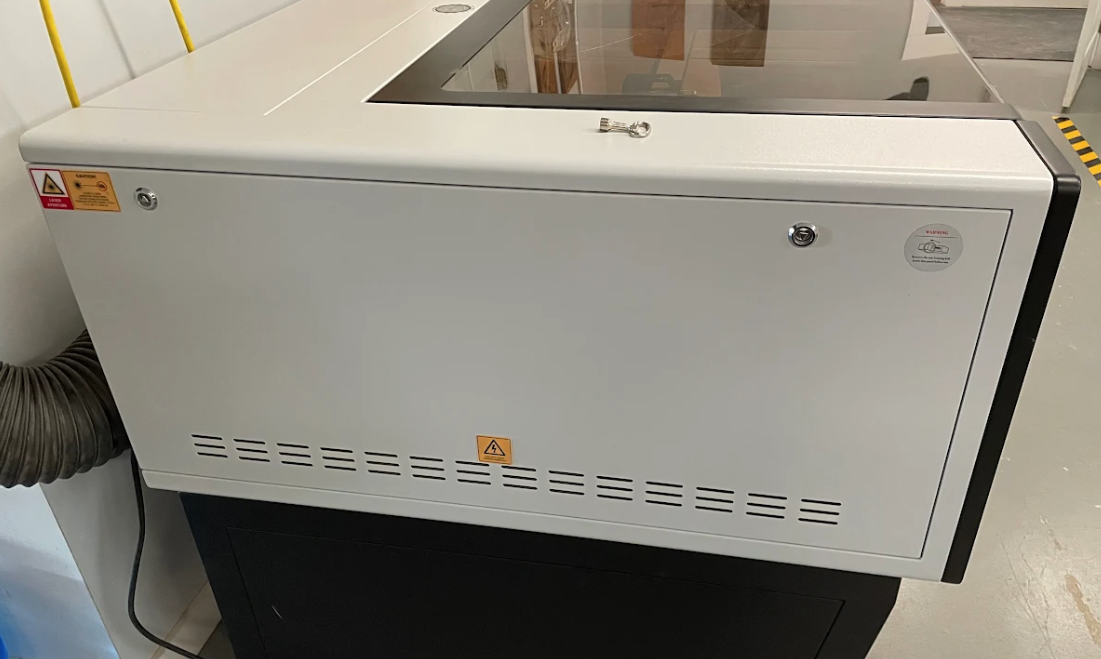

Open up the side panel of the dead LED:

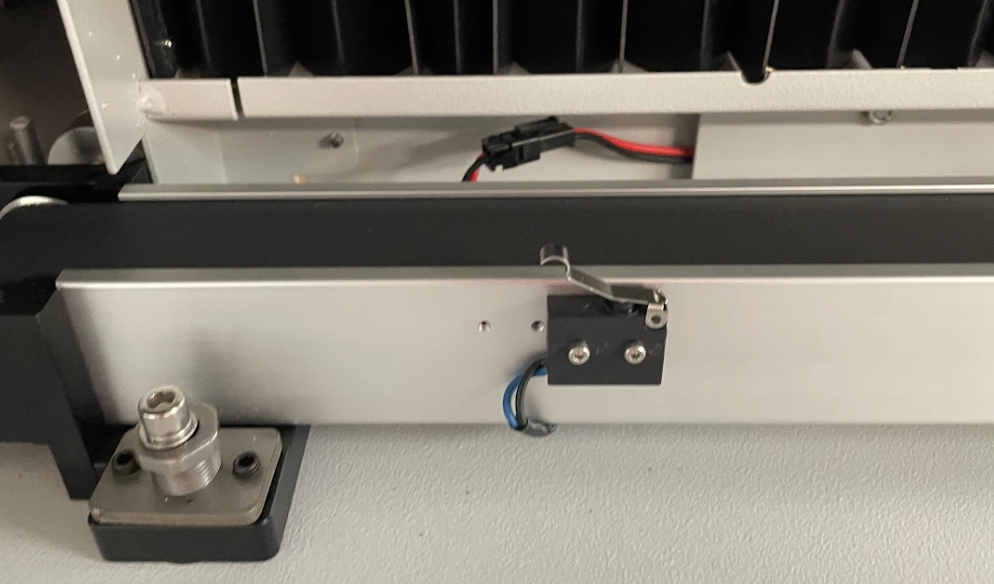

Next, locate the electrical wire and disconnect it.

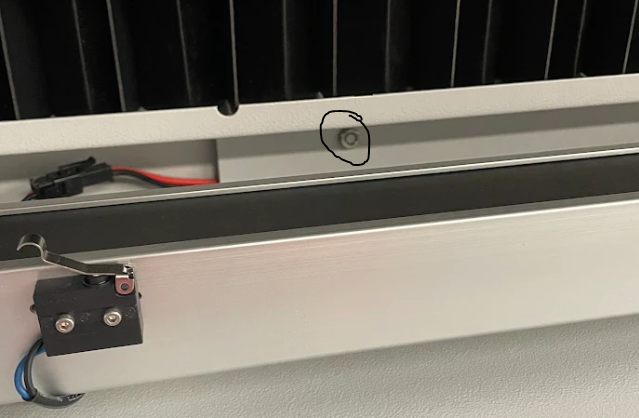

Locate the six nuts holding the LED mounting plate in place, remove them:

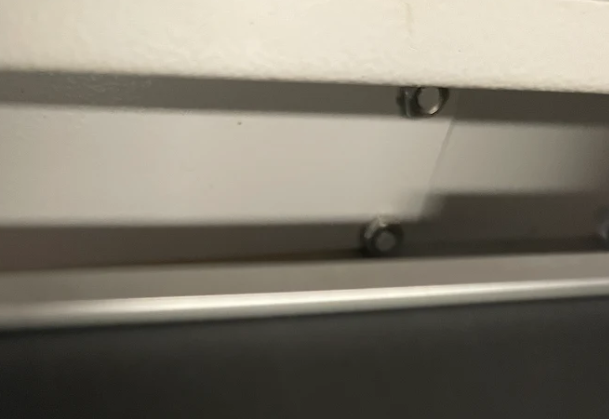

The mounting plate will come out, then you can remove the old LED and replace with new LED strip.

Remove the sticky backing and place in the same location.

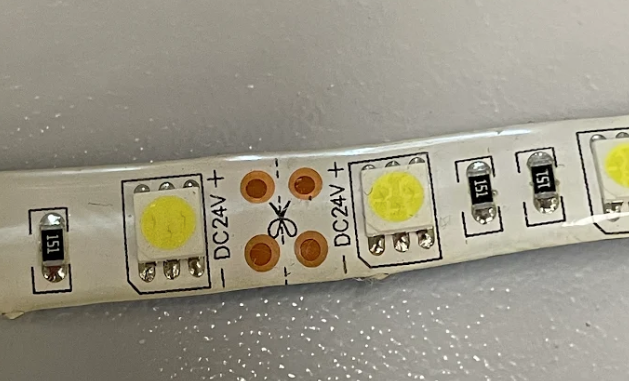

If the led strip needs cut. Make sure to cut at the appropriate cut point.
