To align the red dot light, please see the instructions below.

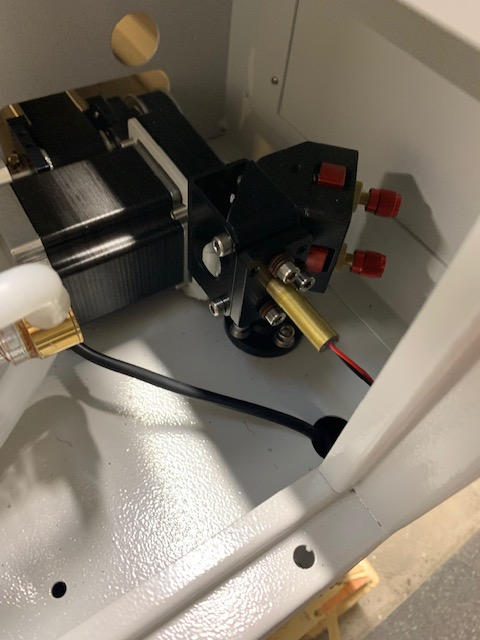

1. open the rear cover of your machine and locate the red dot unit as shown in the picture below.
1. open the rear cover of your machine and locate the red dot unit as shown in the picture below.

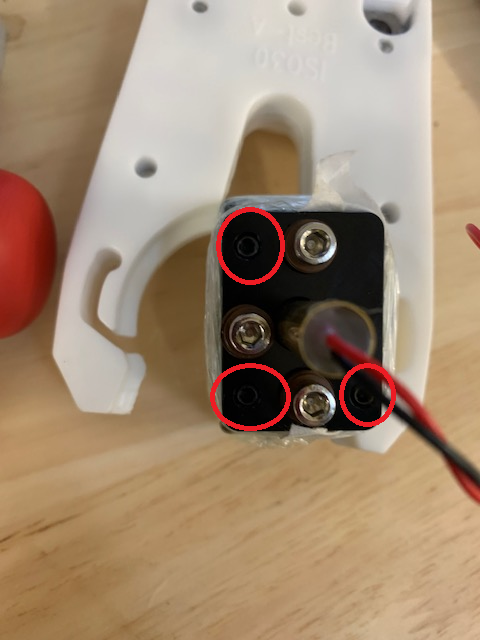

2. you will then use the Allen heads to adjust the red dot until it lines up.
(bolt in the top left corner will raise and lower the beam)
(bolt in the bottom right corner will move the red dot left and right)
(bolt in the bottom left corner is a pivot point and may need to be adjusted to get more room)
Please note it is important not to tighten these bolts too much as it may strip the threads if over torqued.
Please see the picture below for reference.
(bolt in the top left corner will raise and lower the beam)
(bolt in the bottom right corner will move the red dot left and right)
(bolt in the bottom left corner is a pivot point and may need to be adjusted to get more room)
Please note it is important not to tighten these bolts too much as it may strip the threads if over torqued.
Please see the picture below for reference.
*NOTE: if the bolts do not adjust the red dot light, they may be bottomed out. Try backing the bolts off equally and restart the red dot alignment procedure.
