If you are receiving error messages for Masso Wi-Fi module not installed or similar. Please follow the pictures and brief instructions below to open your masso and attempt re-seating or replacing the module.

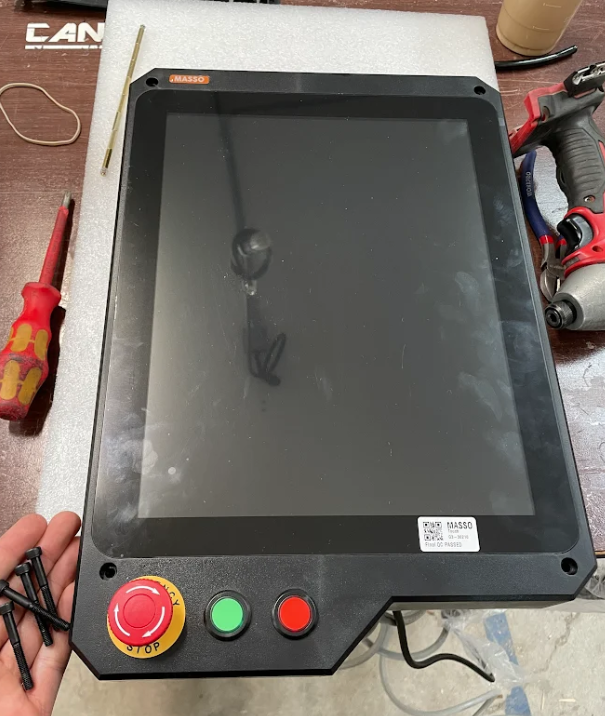

Open up the masso controller. Remove the 4 corner bolts.

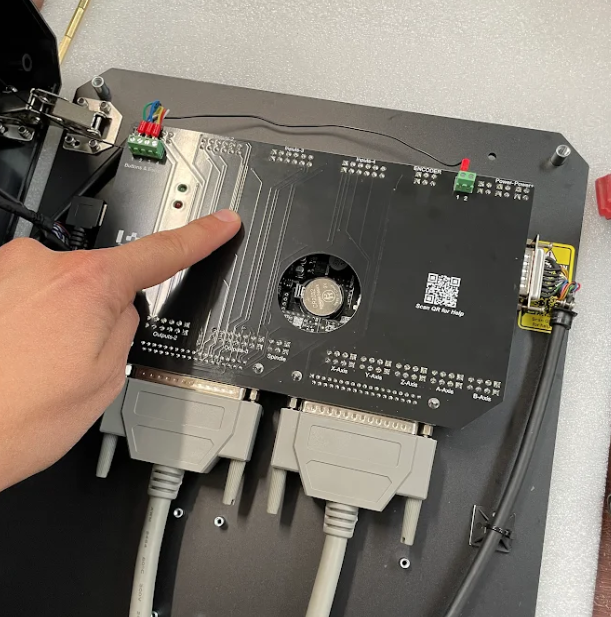

Lift up (separate) the boards carefully. The module is underneath.

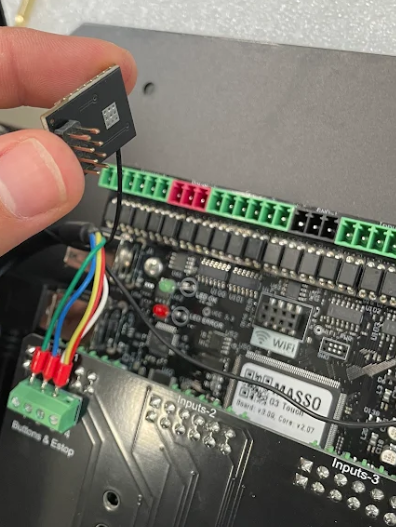

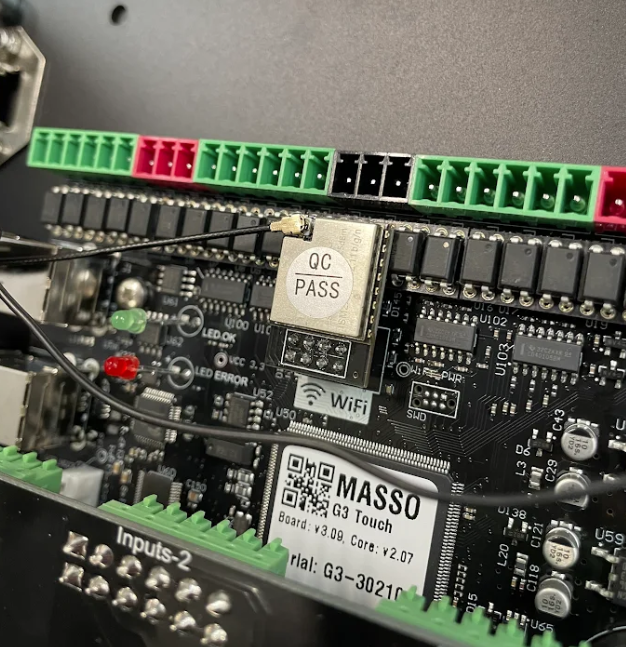

This is the module. It lifts out of it's position.
