E-FML setup

Modified on Fri, 1 Dec, 2023 at 1:59 PM


Quick Initial Setup

E-FML

Checklist:

  • unchecked

    I have reviewed my “CanCam Setup” email for information on my machine

  • unchecked

    Lightburn has been downloaded on my computer and license key registered (Galvo License)

  • unchecked

    My laser has been plugged in with the supplied power cable

  • unchecked

    I have the supplied USB cable connected between my computer and the laser

  • unchecked

    The lens cover has been removed

  • unchecked

    My machine has been powered on to establish the connection


Process (for the original lens attached to machine):

  • unchecked

    Open the orange case and plug the silver USB in to your computer

  • unchecked

    Open Lightburn and select “Devices” in the bottom right

  • unchecked

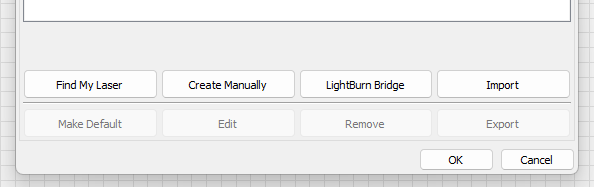

    Select Import

  • unchecked

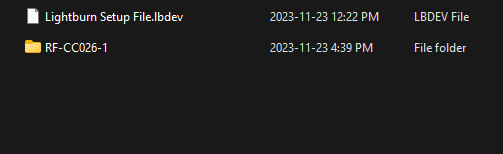

    Navigate to the USB stick and select the file on the front of the USB, it might be called something like “Lightburn setup file” or it might be named after your machine like “E-FML Setup”

  • unchecked

    Your machine is now setup for use with the originally installed lens and computer connected


Process (for additional or newly installed lenses):

  • unchecked

    Open the orange case and plug the silver USB in to your computer

  • unchecked

    Open Lightburn and select “Devices” in the bottom right

  • unchecked

    Select Create Manually

  • unchecked

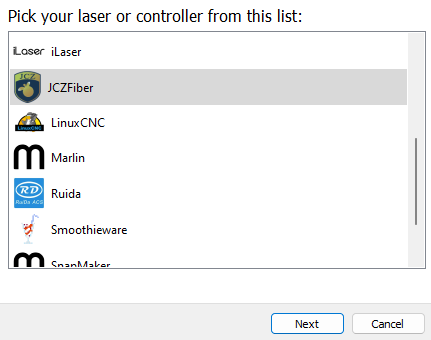

    Select JCZFiber and Click Next

  • unchecked

    Click Import EZCad config

  • unchecked

    Navigate to your USB and open the RF folder

  • unchecked

    Select the folder for the appropriate lens this example is the 175mmx175mm

  • unchecked

    Go through the folders until you find the “plug” folder

  • unchecked

    Then select the markcfg7 file and load it

  • Your laser connection is now established and functional with your new lens
