Laser head alignment

Modified on Thu, 24 Feb 2022 at 11:36 AM

If the laser is cutting tapered parts, or not through the material there may be several causes. Please follow these checks and procedures to help identify and solve the issue.

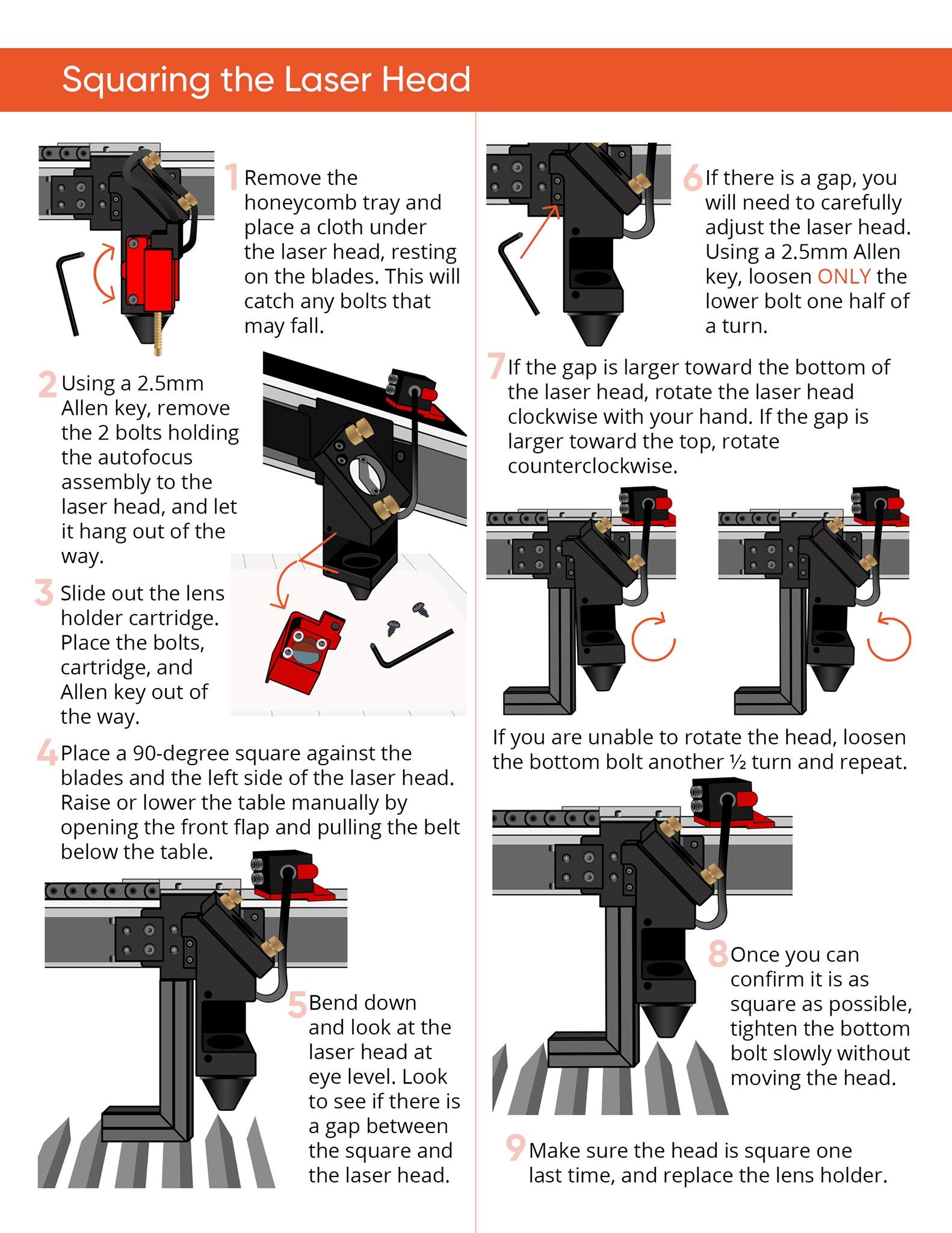

1. Acquire a right angle/engineer’s square and place it on the machines table against the head of the laser and assure the head is square with the table. If the head is not square loosen the bolts indicated and position it perpendicular/square to the table then fasten the bolts, as shown in Figure 1 below.
